Leica iCON iCS50

Leica iCON iCS50 Guide

Advanced Visual Construction Sensor • For Complex Models, Tight Tolerances & Verification

The Leica iCON iCS50 is a next-generation visual construction sensor built for contractors, BIM/VDC teams, and industrial builders who need more than basic layout capability. When your work requires 3D visualization, dense model handling, verification-grade measurement, or tight-tolerance installation, the iCS50 delivers the power, processing, and precision to get the job done right.

Where the iCS20 excels at general layout, the iCS50 is engineered for complex, model-driven workflows—making it the natural step up for teams working with highly coordinated geometry, prefabricated assemblies, or high-accountability documentation.

NOAR Technologies helps teams integrate the iCS50 across BIM, robotic total stations, GNSS, scanning, and prefab workflows to streamline operations and deliver measurable improvements in accuracy and field productivity.

What is the Leica iCON iCS50?

A High-Performance 3D Measurement & Verification Tool

The iCS50 combines controller functionality with a visual measurement engine, enhanced model processing, and optional onboard cameras—giving your crews the tools to:

Navigate complex 3D models
Validate installed conditions in real time
Document deviations and issues
Support high-precision industrial or prefab layout
Handle dense IFC, DWG, DXF, CSV, and coordinated BIM files

It's built for harsh jobsites, long runtimes, and continuous operation in demanding environments.

Who It's Built For

The iCS50 is the right choice for teams working with complex geometry and verification requirements, including:

Industrial and commercial contractors
BIM/VDC-driven layout teams
Prefabrication & modular installation crews
MEP contractors working from coordinated 3D models
Owners and GCs requiring verification-grade documentation
Surveyors supporting detailed QA/QC and dimensional control
Utility/civil crews requiring tight tolerances

When your projects demand dimensional accountability, precise alignment, or model-driven workflows, the iCS50 is your solution.

Top Benefits

1. High-Accuracy Layout for Complex Projects

The iCS50 supports the tight tolerances required for:

Steel structures
Prefabricated assemblies
Industrial facilities
Modular construction
High-precision MEP installations

2. Visual 3D Measurement & Real-Time Verification

Unlike the iCS20, the iCS50 provides:

Onboard 3D visualization
Real-time comparison of installed vs. designed conditions
Measurement & annotation tools
Validation workflows for prefab and critical tolerances

3. Advanced BIM-to-Field Integration

The iCS50 handles large, dense, multi-layered models with ease. Crews can isolate layers, navigate complex geometry, and work directly from coordinated BIM files without compromise.

4. Productivity & Speed

Faster prism tracking
Improved relock performance
Clean visualization of 2D/3D layouts
Reduced steps for offsets, alignments, and set-out

iCS50 vs iCS20: When You Should Step Up to the iCS50

Choose the iCS50 when you need:

Dense, complex, or multi-trade BIM models
Verification-grade measurement
Real-time comparison of field conditions to BIM
Prefabrication or modular alignment
Documentation of deviations and dimensional control
Industrial layout with tight tolerances
Advanced visualization and measurement context
Support for thousands of layout points or high-volume installs

The iCS50 is the natural upgrade path for teams outgrowing basic layout controllers.

Real-World Use Cases

Industrial and commercial building layout
Steel alignment, embeds, anchor bolts
Prefabricated component verification and placement
Complex MEP hanger & sleeve layout
Modular box positioning and leveling
Field verification vs. BIM
As-built documentation for QA/QC
Utility/civil layout with high accuracy

Key Features

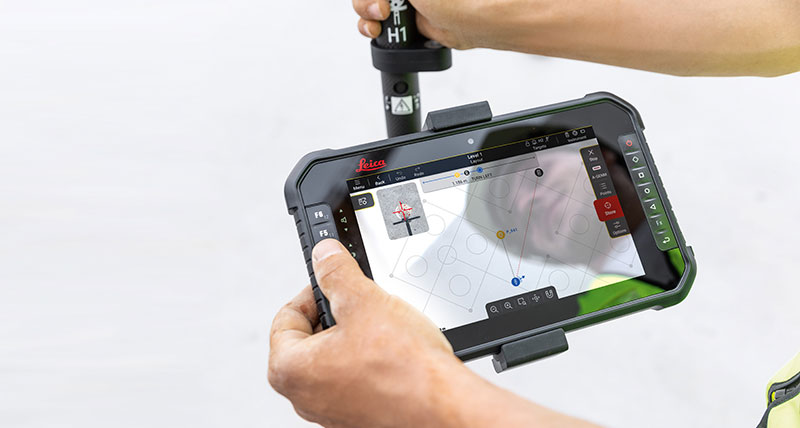

High-resolution sunlight-readable touch display
Enhanced 3D visualization and model rendering
Optional onboard visual measurement tools
Rugged IP-rated housing
Connectivity with robotic total stations & GNSS
Advanced verification workflows
Bluetooth + Wi-Fi
Hot-swappable batteries
Full support for complex BIM and CAD formats

The NOAR Advantage

When you partner with NOAR Technologies, you gain more than equipment—you gain expertise. We provide:

Hands-on onboarding & training
VDC & model workflow optimization
Field & remote technical support
Calibration & servicing
Integration across total stations, GNSS, scanning & prefabrication
Data standards guidance
ROI-focused deployment planning

We specialize in adapting the latest technology and integrating new tech into standard practices. Our goal is to work with you to create a plan that incorporates the software, hardware, and training best suited to the needs of your specific workflow.

Is the iCS50 Right for You?

When your projects involve high accountability, complex models, prefab, or tight tolerances—and you need richer context and verification in the field—the iCS50 is the advanced sensor your teams need to gain a competitive advantage.
